Description

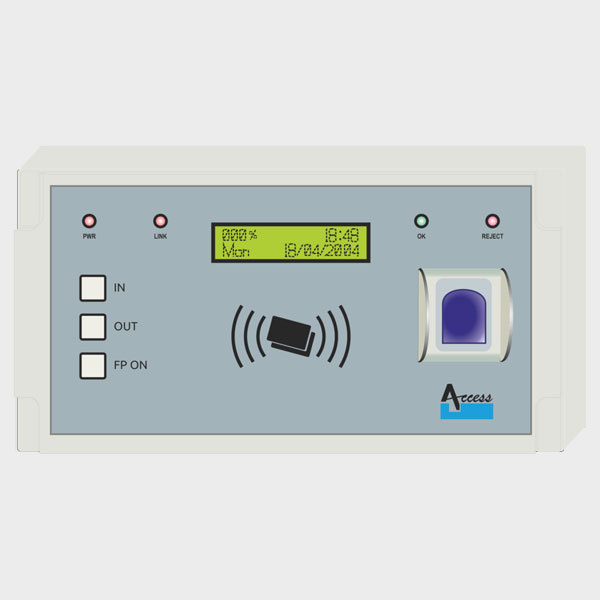

A biometric reader providing potential free change over contact for controlling/signalling external devices. This lightweight, rugged unit ensures proxy elimination.
Features:
- Built-in TCP/IP communication protocol connecting directly for online data transfer also has built-in RS 232 port.
- Option for connecting smart card reader MIFAREÒ ISO 14443A
- 16 x 2 characters backlit LCD
- Built-in power line monitoring
- Built-in operational battery backup
Technical Specifications:
- Dual CPU: RISC-based high-speed Micro Controller
- Separate RISC CPU for fingerprint verification.
- Memory Capacity: 128 KB
- Finger Print template as per ISO 19794
- Sensor make: Lumidigm
- Lumidigm Mercury (Multispectral) technology
- Stores 5000 transaction & 50,000 fingers
- 1000 finger – 1:N Group in a single database
- Enrolls fingerprint template directly from the reader
- Fingerprint image 500 dpi FAR 1/10,000 to 1/100,000 and FRR 1/100 to 1/30
- Displacement 5 mm with any Rotation
- Graphical display for Card No., Date, Time, Status of memory consumed
- 4-6 hours battery backup
- Built-in 3 years Lithium Battery Backup for RAM & Real-Time Clock & Calendar
- Badge Reading: (Optional)
- Build-in power monitoring with watchdog timer
- Size : 130mm W x 175mm H x 45mm D
- Material: Gray Engineering Plastic
- Operating Temp: 10c to 55 C
- Operating Humidity: 0-95% non condensing
- Input Voltage: 190-260V AC
- Option for connecting smart card reader MIFAREÒ ISO 14443A
