Description

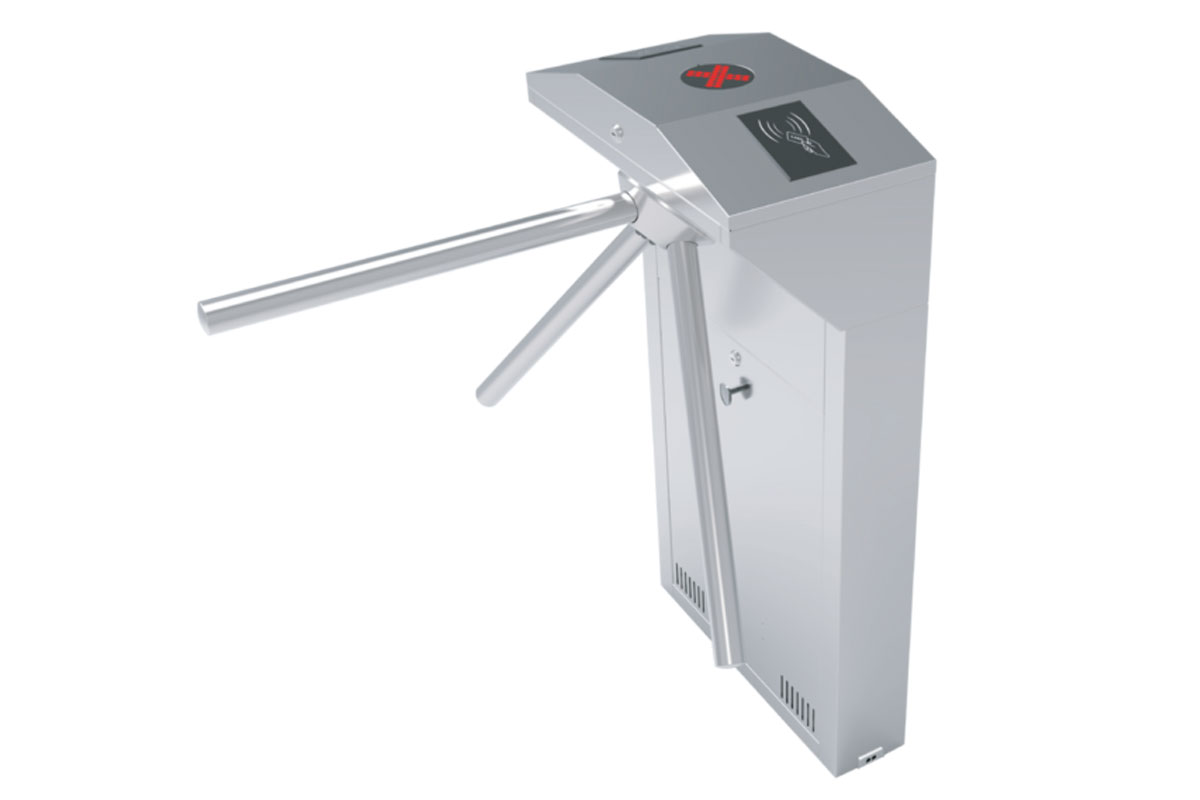

Tripod 3338 is equipped with a passing indicator light, prompting the passing direction, and comes with a card-swiping memory and self-detection function.
Features:
- MS steel material housing is available
- Installation of card readers
- Input signal optional (DC12V/Dry contact/RS485/RS232/Remote)
- Flow counting device
- Card swiping memory function
- Alarming for illegally pushing bars.
- Self-detecting function
- Bar protection sleeve(optional)
- 2mm SS304 stainless steel
- LED display
- Railing off against power off
Technical Specifications:
- Power consumption: 50W
- Housing Size: 1300*280*950mm
- Housing material: 1.5–2mm, 304# stainless steel, corrosion-resistant
- Channel width: 550–600mm
- Pass speed: 25 persons/min.
- IP protection: IP44
- Input signal optional: DC12V/dry/contact/RS485/RS232/Remote)
- railing-off against power off: Yes
- Working environment temperature: minus 30℃ to 70 ℃
- Working environments: indoor, outdoor
- Relative humidity: ≤95% coagulation free
