Description
FC320 is an optical fingerprint USB Reader, a single fingerprint capturing device designed to meet the stringent USA government’s image quality level demanded by FBI’s Image Quality Specifications (IQS) for fingerprint readers. As a result, it is a perfect choice for customers requiring fingerprint authentication applications to comply with FIPS 201/PIV.

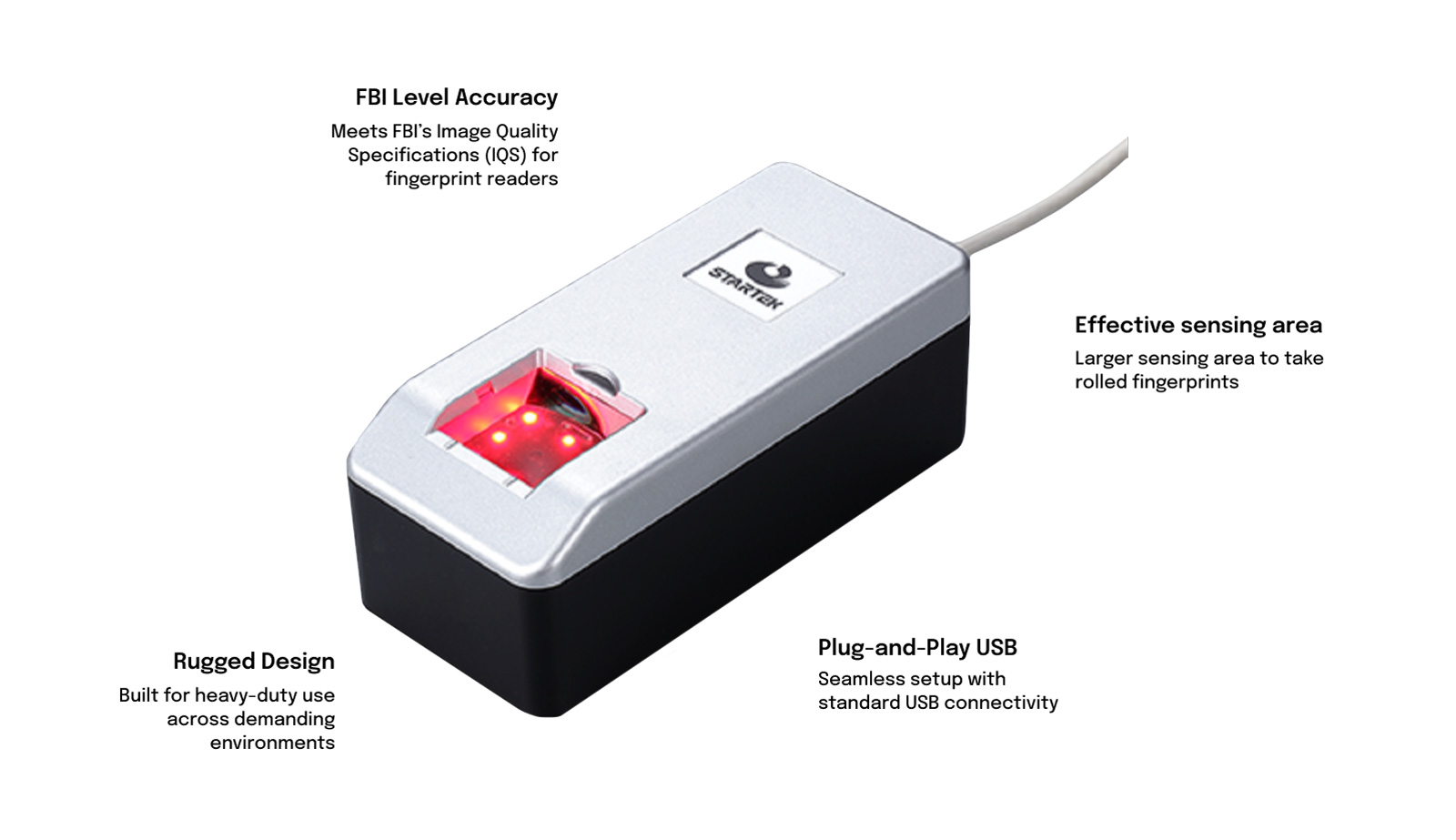

Features:
- High scanning resolution 500dpi ± 1%
- Consistent forensic-quality flat fingerprint images
- Linearity and rectilinearity less than one pixel (average)
- Generous coating-free capture platen area 1.2″ x 1.2″
- Effective sensing area 0.9″ x 0.9″
- Larger sensing area to take rolled fingerprints
- Rugged design
- MINEX compliant SDK available
- Fingerprint capturing for national ID card /PIV card personalization
- Fingerprint enrollment and verification station
- Social security/pension schemes
- Border control
Technical Specifications:
- Sensors: CMOS sensor
- Image resolution: 500 dpi（H）,500 dpi（V
- Effective sensing area: 0.9”*0.9”（H * V)
- Platen Size: 1.2” × 1.2”（H * V）
- Scanner output image size: 450 * 450 pixels（H * V）
- Gray Level: 8bits/pixel, max 256 grayscales
- Image ratio of length to width: 1：1
- Scanner interface cable: Standard USB compliant cable
- Power supply: DC 5V (from USB port)
- Dimension: 145mm（L）×62mm（M）×51mm（H)
- Weight: 95.8g（Approximated）
- Distortion: ＜1%
- Operation temperature: 0℃~45℃
- Humidity: 10-85% non condensing
- Minimum hardware requirement: P3 800MHz CPU or up, 256MB, USB 2.0
- Software platform: Windows XP/Windows 7 >
