Description

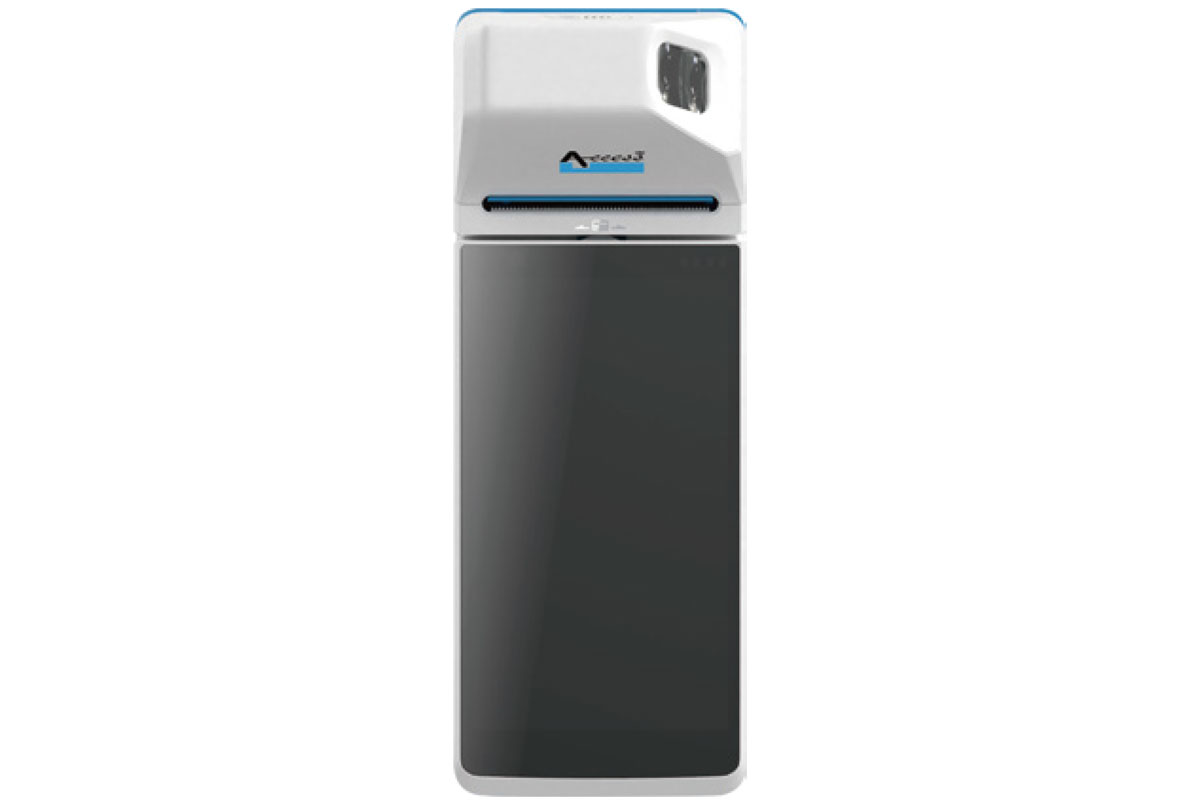

APos A20 comes with an android 10 and Quod-Core MSR + IC + NFC + QR processor. It is equipped with ACPL optical fingerprint scanner.
Features:
- UIDAI Approved authentication Device for Aadhar
- STQC Approved Single Finger Scanner
- BIS Registration No.: R-72003948, Confirming to IS 13252 (Part-1):2010 + A1:2013 + A2:2015/IEC 60950-1:2005+A1:2009 + A2:2013,
- MSR + IC CARD + NFC +
- Device as per MOSIP L1 and UIDAI L1 specs, having Pre certified Renesas
- Controller
- USB 2.0 Interface (High Speed), Micro USB Type-C
- Fast scanning speed
- Non-distorted image quality
- Small template size, ISO & PIV, BIS approved.
- Outstanding placement to image identification performance
- Ergonomic design to guide finger position for effective scanning
- The reader is totally shock proof, for accidental falls from table.
- Suitably protected against dust and water ingress, IP54
- Having Secure boot, Encryption in trust zone, FTM Supported Security
Technical Specifications:
- Sensors: Optical
- Image Resolution: 500 dpi (H), 500 dpi (V)
- Image Capture Area: 13.41 x 16.45(mm): 15.44×17.475(mm) Optional
- Platen Area: 16.5×19 (in mm) (HxV)
- Scanner Output Image Size/Native: 264×324 pixel (HxV) 304 x 344 pixel (HxV).Optional
- Gray Leval: 8 bit/pixel, max 256 gray scales
- Image Ratio of Length to Width: 1:1
- Distortion: < 1% Meeting specifications
- Scanning Light source: Ultra Red(940mm) capable of support more
- Battery: ISO/IEC 7816. Conform to EMV L1/L2
- API: Image Capture, Enrollment / Template Extraction
