Biometric Solutions

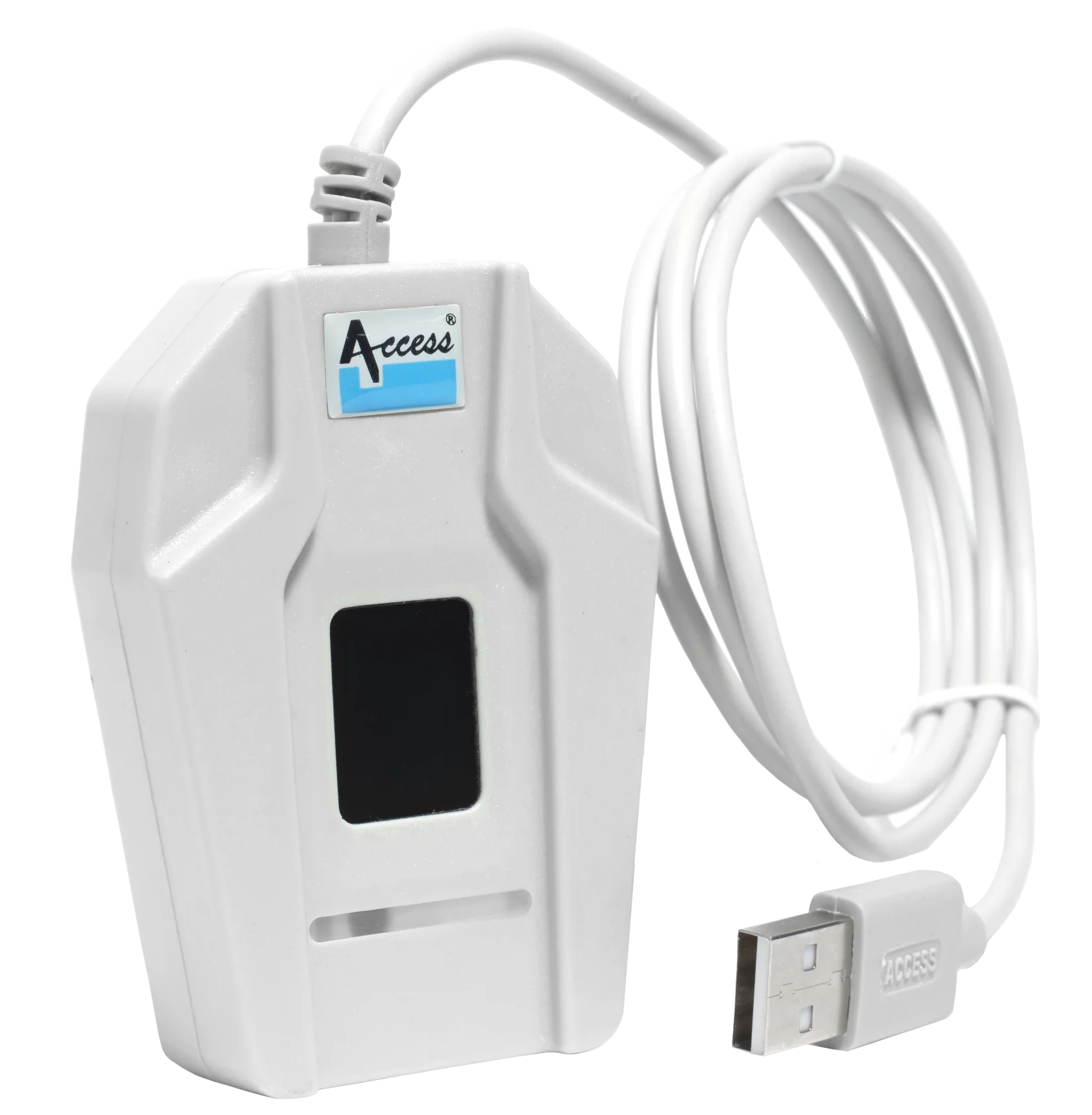

AST300

The AST300 is made for institutions, enterprises, corporates, and SMEs that want dependable biometric performance day after day.

Thermal Liveness Detection

Smart enough
to spot the fakes

Stronger security

Fewer false entries

Greater trust

Highlights

UIDAI Approved L1 Authentication Device

STQC Certified Single
Finger Scanner

Conforms to ISO 19794-2,
ISO 19794-4 Standards

IP54 Dust & Water
Protection

Pre certified
Renesas Controller

FIPS-201* and
Minex-III Compliant

Fits in your pocket (60g)

Key Features

Secure Verification

Enhanced anti-spoofing through thermal liveness detection.

Flexible Connectivity

Supports TCP/IP and USB communication for smooth data transfer.

Uniquely Identifiable

Allows device traceability, analytics, and fraud management.

Warranty & After-Sales Service

Our devices have 3-year warranties, and our dedicated 12 hour Customer helpdesk center is equipped to help you with any service and maintenance requirements.

Sensors & Weight

Thermal Sensor, Model NB-65210-S | 60g (approx)

Capture Area

FAP20 (15.25mm x 20.34mm)

Gray Level

8 bit/pixel, max 256 grayscales

Image Resolution

500 dpi

Dimension

80mm(L) x 57mm(W) x 23mm(H)


Supporting JPEG 2000 lossless, ISO, PIV, WSQ (Compression 10:1)

Live Scan

Yes, ensures protection agaiunst spoofing

Temperature

0 to 50 Degree

ESD

8KV

Scanner Output Image Size

300 x 400 pixels

Scanner Interface Cable

USB Type-A, Micro USB & Type-C

Supported Operating Systems

Windows, Android and Linux Supported

Power Supply

1 Watt. Approx. (From USB port) (100 mA. approx, standby: 20mA)

Certifications

ISO 19794-2, ISO 19794-4, FIPS 201* Compliant, Minex-III, STQC and UIDAI certified L1 thermal fingerprint scanner
